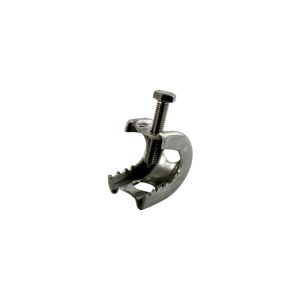

Construction Hardware Reversible Steel C-Type Beam Clamp

1. These clamps offer a neat and organized appearance by securely holding accessories and components to the beam.
2. They can be easily accessed and adjusted without the need for specialized tools or equipment.
3. Beam clamps are suitable for both temporary and permanent installations, offering versatility for different project requirements.

1. Material: Cast Malleable Steel with hardened cup point set screw and jam nut.

2. Finish: Electro-galvanized finish for enhanced corrosion protection.
Available in hot dip galvanized fi nish (special order).

3. Features: used on top or bottom flange of the beam. Beveled lip allows hanging from top flange where clearance is limited. may be installed with the set screw in the up or down position. Offset design permits unlimited rod adjustment by allowing the rod to be threaded completely through the clamp. The rear window design permits inspection of thread engagement.

4. Function: For attachment to structural shapes requiring wider throat especially under roof with bar joist construction. This clamp may be used with the set screw in the up or down position.
